High-resolution core image scanner

High-resolution Core Image Scanner is an integrated equipment of electromechanics which is used to collect the high-resolution image of core. After 6 years’ research and development, in 1999 this instrument was launched into market by Huafu Information Technology Co.,Ltd.At present we have occupied china’s market by more than 80% and there are 16 oil fields in china who purchased this instrument to build their numeric core "storeroom".

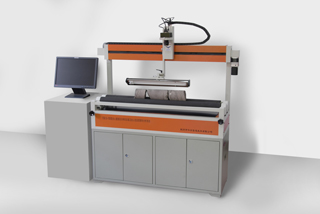

YXCJ-Ⅶ High-resolution Core Image Scanner

 Model No: YXCJ-Ⅶ

 Size: 1050mm 420mm700mm(L W H)

 Weight : 85kgs

 Drilling Core Diameter: 40mm~180mm

 Drilling Core Length: 1000mm

 Image resolution:100~600DPI(the highest precision is 24000 pixel/m)

 Work Voltage: 180v~260v

 Power Supplying Frequency : 50HZ

 Power: 350w

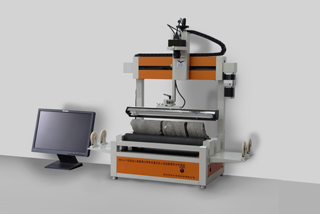

YXCJB Portable High-resolution Core Image Scanner

 Model No. YXCB

 SIZE: 600mm 400mm 700mm(L W H)

 Weight : 49KG

 Drilling core diameter: 40mm~180mm

 Image resolution:100~600DPI(the highest precision is 24000 pixel/m)

 Work Voltage: 180v~260v

 Power Supplying Frequency : 50HZ

 Power: 350w
The core surface image taken by the scanner
The core surface image taken by the scanner

The core slice image taken by the scanner
The core slice image taken by the scanner
The core slice image taken by the scanner
